ظل (رياضيات)

صورة (1)

ظل الزاويه يُعرف بأنه النسبه بين الجيب وجيب التمام لنفس الزاويه.

اذا نظرنا إلى صورة (1)، نرى ان المثلثات oab و OCD مماثلة، لذلك $\frac{AB}{OA}=\frac{DC}{OC};\frac{\tan x}{1}=\frac{DC}{OC}$ لذي ينطوي على العلاقة الاساسية بين الظل، الجيب وجيب التمام : $\tan x=\frac{\sin x}{\cos x}$

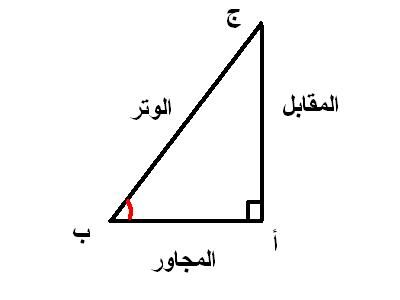

حساب الظل: في مثلث قائم الظل يساوي طول الضلع المقابل/طول الضلع المجاور

كما أن : ظل=جب/نجب مثال:

مثلا: طول الضلع [أج] =15سنتمتر طول الضلع [أب] =05سنتمتر طول الضلع [ج ب] (الوتر) =19سنتمتر لحساب ظل(tan) الزاوية ب : المقابل [أج] / المجاور [أب] 33 / 05 = 3 إذن: ظل(tan) الزاوية ب هو: 5

 التاريخ

المقالة الرئيسية: تاريخ زاوية الظل

Function	Abbreviation	Identities (using radians)
Sine	sin	$\sin \theta \equiv \cos (\frac{\pi }{2}-\theta )\equiv \frac{1}{\csc \theta }$
Cosine	cos	$\cos \theta \equiv \sin (\frac{\pi }{2}-\theta )\equiv \frac{1}{\sec \theta }$
Tangent	tan (or tg)	$\tan \theta \equiv \frac{\sin \theta }{\cos \theta }\equiv \cot (\frac{\pi }{2}-\theta )\equiv \frac{1}{\cot \theta }$
Cosecant	csc (or cosec)	$\csc \theta \equiv \sec (\frac{\pi }{2}-\theta )\equiv \frac{1}{\sin \theta }$
Secant	sec	$\sec \theta \equiv \csc (\frac{\pi }{2}-\theta )\equiv \frac{1}{\cos \theta }$
Cotangent	cot (or ctg or ctn)	$\cot \theta \equiv \frac{\cos \theta }{\sin \theta }\equiv \tan (\frac{\pi }{2}-\theta )\equiv \frac{1}{\tan \theta }$

 Right triangle definitions

A right triangle always includes a 90° (π/2 radians) angle, here labeled C. Angles A and B may vary. Trigonometric functions specify the relationships among side lengths and interior angles of a right triangle.

The sine, tangent, and secant functions of an angle constructed geometrically in terms of a unit circle. The number θ is the length of the curve; thus angles are being measured in radians. The secant and tangent functions rely on a fixed vertical line and the sine function on a moving vertical line. ("Fixed" in this context means not moving as θ changes; "moving" means depending on θ.) Thus, as θ goes from 0 up to a right angle, sin θ goes from 0 to 1, tan θ goes from 0 to ∞, and sec θ goes from 1 to ∞.

The cosine, cotangent, and cosecant functions of an angle θ constructed geometrically in terms of a unit circle. The functions whose names have the prefix co- use horizontal lines where the others use vertical lines.

The unit circle

 بعض الزوايا الشهيرة

• [إعجاز القرآن الكريم في وصف حركة الظلال http://www.nooran.org/con8/Research/8.pdf]
• ظل0=0
• ظل90=عدم تعيين
• ظل180=0
• ظل270=عدم تعيين

Trigonometric functions in the complex plane

$\sin z$	$\cos z$	$\tan z$	$\cot z$	$\sec z$	$\csc z$
