المقبرة KV39

KV39
صاحب المقبرة أمنحوتپ الأول
KV39
الإحداثيات	25°44′11″N 32°36′02″E
الموقع	شرق وادي الملوك
تاريخ الاكتشاف	1899
صاحب الاكتشاف	ڤيكتور لورت
← سبقها KV38 تبعها → KV40

المقبرة رقم 39 و المعروفة علمياً بالرمز KV39 تقع في وادي الملوك في مصر ، و هي واحدة من المواقع المحتملة لمقبرة الملك أمنحتب الأول . وهي تقع على ارتفاع في الجروف الصخرية بعيداً عن قاع الوادي الرئيسي الذي يضم معظم المقابر الملكية. وهي تقع في وادي صغير يمتد من الجانب الشرقي من قمة القرن ، مباشرة تحت التلال حيث تقع قرية العمال.

و ليس فقط موقعها غير معتاد بالنسبة للمقابر الملكية في هذه المنطقة ، بل تخطيط المقبرة كذلك فريد من نوعه. فلها محوران عوضاً عن واحد ، واحد يمتد نحو الشرق و آخر نحو الجنوب. و تم اكتشافها بواسطة مكاريوس و أندراوس ، الذان كانا يعملان لصالح عالم المصريات الفرنسي فيكتور لوريه، ولكن لم يتم فحصها بشكل كامل. عندما تم حفرها وإعادة فحصها في تسعينات القرن العشرين من قبل عالم الآثار جون روز، تم العثور على مقتنيات للملك تحتمس الأول و أمنحتب الأول و ربما تحتمس الثاني كذلك. وقد تم فحص الموقع في عام 2002 من قبل إيان باكلي و قام فريقه بتصحيح مخطط المقبرة العام و انتشل شظايا من الفخار لفحصها لاحقا.

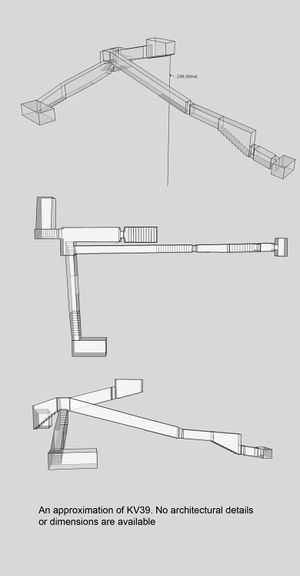

Isometric, plan and elevation images of KV39 taken from a 3d model

 الموقع

KV39 is located to the south of the Valley of the Kings, high up at the head of a small valley above the tomb of Thutmose III, on the eastern side of Al-Qurn, the peak above the royal valley. This kind of location, high in the cliffs and placed below a dry water course, is typical of tombs of the early Eighteenth Dynasty.

 الاكتشاف والحفرية

KV39 was discovered in 1899 or 1900 by the French Egyptologist Victor Loret or by the Egyptian excavators Macarious and Andraos. The tomb was visited by the Egyptologist Arthur Weigall and others, and Weigall published a description of the tomb in 1911. Elizabeth Thomas, an American Egyptologist, drew a plan of the tomb in 1966 without entering it, finding the entrance was blocked by a large boulder.

The tomb was first excavated between 1989 and 1994 by the Egyptologist John Rose. The stairs were cleared of the large rock and a large trench was dug in front of the tomb, uncovering miniature vessels placed in a pit 1 متر (3.3 ft) from the entrance. They bore the cartouches of Thutmose I, Thutmose II and Amenhotep II and represent a foundation deposit dating to the mid-Eighteenth Dynasty. A stone wall was found at the top of the stairs, presumably constructed in the early 1900s to prevent debris from refilling the tomb during clearance work; a second wall had been built inside the tomb, replacing a section of steps cut from poor quality rock.

The Egyptologist Ian Buckley conducted further excavation and survey work in the tomb in 2002. The tomb had been entered after the conclusion of Rose's work and refilled with debris washed in during the floods of 1994. The more unstable layers of rock had been affected by the water. The southern passageway was not excavated as sections of the ceiling had collapsed in addition to containing flood-washed fill. At the conclusion of the 2002 season the entrance was sealed with steel mesh and two stone walls were built to protect it from further flood action and prevent the intrusion of more debris. The tomb had evidently seen human use in the past, based on the presence of soot from fires on the ceilings of the antechamber and upper burial chamber, and the finds of rubbish such as newspapers and modern litter.

Analysis of the pottery indicate a mix of early and later Eighteenth Dynasty styles. At least part of the tomb had been used for burials. The entrance to the eastern passage showed signs of mud plaster, and large quantities of linen fabric, pottery, and fragments of coffins were found in the passageway and burial chamber. The mummified remains show evidence of a high standard of mummification, including the use of padding inserted under the skin and fine quality textile wrapping.

 العمارة

KV39 is entered via a steep set of stairs that descend for 7 متر (23 ft). This opens onto to a descending corridor that leads a square hall, beyond which is a rectangular chamber that is entered via a low doorway. A set of unfinished stairs are cut into the floor in this room. Two further descending passageways run from the square hall. One, known as the east passage, begins at 180 degrees to the axis of the entrance. It is neatly cut and extends 38.33 متر (125.8 ft) through three steeply descending corridors and two staircases to a single rectangular chamber. The other passageway extends to the south, at 90 degrees to the main axis. This passageway has not been fully cleared but it appears to be more roughly cut and descends steeply for a distance of about 25 متر (82 ft).

The architectural layout of the tomb seems to have been altered several times and cut in different phases. It may have started as a simple corridor tomb, or as a vertical shaft accessing a corridor and rectangular chamber. The latter form is very similar to tomb ANA at Dra' Abu el-Naga dating to the late Seventeenth or early Eighteenth Dynasty. Aston sees the southern extension to the tomb to be the second phase of construction, while Buckley and colleagues consider it the last phase and represents an unfinished annex or a cache for royal mummies. The southern passageway is very similar to TT358, tomb of Amenhotep I's sister Ahmose-Meritamun and TT320, the royal cache. Aston considers the third phase of construction to be the cutting of the east extension as it is similar in design to KV32, tomb of Thutmose IV's mother Tiaa, and presumably cut at around the same time as that tomb, during the mid-Eighteenth Dynasty in the reigns of Amenhotep II or Thutmose IV.

The tomb is undecorated but mason's marks in red paint, used to guide the cutting of the tomb, are seen throughout on the ceilings and walls. Their locations and appearance are similar to those seen in the mid-Eighteenth Dynasty tombs of Thutmose III (KV34) and Amenhotep II (KV35).

KV39 may be one of the earliest tombs in the Valley of the Kings. Its location is indicative of the early Eighteenth Dynasty, as is its east-facing entrance, is something seen in royal Theban tombs before and during the early part of the Eighteenth Dynasty. The various phases of its construction are similar to the tombs of early Eighteenth Dynasty royalty. It certainly predates the tomb of Thutmose III as it lacks a protective well chamber.

 الشاغل المزمع

It is unknown who the tomb was cut for but based on its architecture it was probably intended for a queen of the early Eighteenth Dynasty.

KV39 as the burial place of Amenhotep I was first suggested by Weigall in 1911. He drew on the location of that king's tomb as described in the Abbott Papyrus, as being 120 cubits (63 متر (207 ft)) from a feature called aḥay to the north of the "house of Amenhotep of the Garden". The translation of aḥay is disputed and the other landmarks are not securely identified, but Weigall identified aḥay as the way station on the high path above KV39.

Rose suggested KV39 was originally the tomb of Ahmose Inhapy and was later expanded by the cutting of the east passage for the reburial of Amenhotep I. This is based on inscriptions on the coffins of Ramesses I, Seti I, and Ramesses II which state they were moved from KV17 to the tomb of "Queen Inhapy in which Amenhotep I lay".

Sjef Willockx has suggested that KV39 was not the tomb of Amenhotep I, but rather Tomb ANB in Dra' Abu el-Naga'. Instead, he suggests that KV39 was actually the original tomb of Thutmose I before being moved to KV20 by his daughter Hatshepsut.

 انظر أيضاً

• Tomb ANB, another candidate for Amenhotep I's tomb

 انظر أيضاً

Another possible location of the tomb of Amenhotep I's tomb is Tomb ANB.

 وصلات خارجية

• Theban Mapping Project: KV39 - Includes detailed maps of most of the tombs.
