PL-15

لمعلومات عن المسدس الذي يحمل نفس الاسم، انظر مسدس لبدڤ.
PL-15

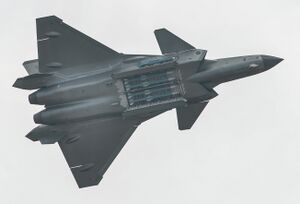

J-20 fighter (44040541250) (cropped).jpg
مقاتلة چنگدو ج-20 مزودة بأربعة صواريخ PL-15 داخل حجرة التسليح
النوعصاروخ جو-جو خارج مدى الرؤية البصرية
مكان الأصلالصين
تاريخ الخدمة
في الخدمة2016-الحاضر
تاريخ الانتاج
الصانعالأكاديمية الصينية للصواريخ المحمولة جواً (CAMA)
المواصفات
الطول399.6 سم (PL-15E)
القطر20.3 سم (PL-15E)
المحركصاروخ ذو وقود صلب بمحرك فيضي[1]
المدى
العملياتي
200
السرعة5+ ماخ[2]
نظام
التوجيه
التوجيه النشط بالرادار
منصة
الإطلاق
J-20، J-35، J-10C, J-15، J-16، J-11B، JF-17 Block-3

PL-15 (الصينية: 霹雳-15; پن‌ين: Pī Lì-Yāo Wǔ; lit. 'Thunderbolt-15'، اسم الناتو: CH-AA-10 أبدون[3])، هو صاروخ جو-جو طويل المدى موجه بالرادار النشط طورته الصين، ويستخدمه كلاً من سلاح الجو وسلاح الجو البحري لجيش التحرير الشعبي، وكذلك القوات الجوية الپاكستانية.

التاريخ

The PL-15 is developed by Luoyang-based China Airborne Missile Academy (CAMA).[4] The missile was test fired in 2011 and referenced by Chinese state media in 2015.[5] It was spotted in 2013 mounted on a prototype of Chengdu J-20.[6]

The PL-15 entered People's Liberation Army Air Force (PLAAF) military service around 2015[7] to 2017.[5] The carrying platforms include the Chengdu J-10C, the Shenyang J-16 and the Chengdu J-20. It has also been spotted on the Shenyang J-11B.[6] The PL-15 has begun to replace the earlier PL-12 as the standard beyond-visual-range missile for both PLAAF and People's Liberation Army Naval Air Force (PLANAF) fighters.[8][6]

In 2017, the United States began developing the AIM-260 JATM to replace the currently in-service AIM-120 AMRAAM in order to better counter the PL-15. The AIM-260 JATM is planned to enter service by 2024, with advanced variants of the AIM-120 (such as the AIM-120D) serving as a stop-gap until the AIM-260 can be fielded.[9][10]

The PL-15E, the export variant, was presented at the 2021 Zhuhai Airshow. The PL-15E has less range than the PL-15, possibly due to changes in propellant or rocket motor.[6] This is similar to the situation between SD-10 and its domestic counterpart PL-12.[6]

There were constant rumors about a variant or derivate of the PL-15 designed for compressed carriage.[11] In 2020, the International Institute for Strategic Studies (IISS) reported the development of the PL-16 missile, a thinner version of the PL-15, to allow J-20 to carry six missiles inside its internal carriage.[12] In January 2024, the PL-16 missile was confirmed to have a smaller airframe design with folded fins and a high-performance dual-pulse motor to maintain a performance level similar to the regular PL-15.[4] At the 2024 Zhuhai Airshow, the export variant PL-15E was shown to have folding rear fins, increasing the internal payload of the Chengdu J-20 and Shenyang J-35.[13][14] The PL15 and PL-15E with folding fins could supplement or replace the regular PL-15 in the future.[11]

التصميم

The missile is measured between 3.8 و 4 متر (12 و 13 ft),[8] longer and wider than other contemporary radar missiles. The cropped control fins are designed for internal carriage by stealth aircraft.[6] A later redesign incorporated folding tail fins and smaller central fins, further decreasing its footprint.[13] It incorporates a dual-pulsed solid-fuel rocket motor,[15][5] capable of a speed of Mach 4+ and a range of more than 200 كيلومتر (120 mi) – comparable to that of the Anglo-French MBDA Meteor.[8] Compared to the ramjet-powered Meteor, which has advantages in sustained flight profile with a fly-out speed between Mach 3 and 3.5, the dual-pulsed solid propellant rocket motor of PL-15 offers higher burn-out speed excess of Mach 5, then gradually loses its velocity at the terminal phase.[16] Meteor is likely to retain a larger NEZ (No Escape Zone) and higher long-range kill probability due to its ramjet propulsion.[17][8] However, PL-15 can also sustain the Mach 5 speed longer if launched at supersonic speed.[2]

The missile is guided by a miniature active electronically scanned array radar seeker,[18] sporting both active and passive modes for the different mission set. It also features improved resistance to countermeasures.[6] The hybrid guidance system supports a mid-course two-way datalink led by AEW&C aircraft and autonomous terminal radar homing.[5]

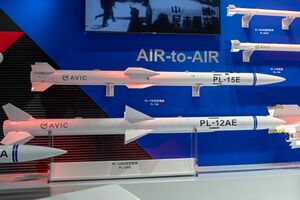

PL-15 E and PL-12 AE air to air missile

التاريخ العملياتي

پاكستان

استخدمت القوات الجوية الپاكستانية صواريخ PL-15E في الضربات الپاكستانية الهندية 2025. في 7 مايو 2025، عُثر على حطام طائرة PL-15E پاكستانية في حقل بالقرب من مدينة هوشيارپور الهندية بولاية الپنجاب.[19]

التنويعات

صاروخ PL-15E يُنتج بواسطة الروبوتات في مصنع صيني مؤتمت بالكامل.
PL-15
PLAAF domestic version with an estimated range of 200–300 km (120–190 mi).[5][8][1]
PL-15E
Export version of PL-15 with a reduced maximum launch range of 145 km[20]
PL-15/E Folding Fins
PL-15 and PL-15E with folded tail fins that allows J-20 and J-35 internal weapons bay to carry six missiles.[11][13]
PL-16 (CH-AA-X-13)[2]
A further development of PL-15 that allows J-20's internal weapons bay to carry six missiles simultaneously (whereas PL-15 is quad-packed). The PL-16 missile, while smaller in dimension, features a compressed airframe, folded fins, and a high-performance dual-pulse motor to deliver the same performance as the regular PL-15.[4]

المشغلون

Flag of the People's Republic of China.svg الصين
Flag of Pakistan.svg پاكستان
